parsedmarc documentation - Open source DMARC report analyzer and visualizer¶

A screenshot of DMARC summary charts in Kibana

parsedmarc is a Python module and CLI utility for parsing DMARC reports. When used with Elasticsearch and Kibana (or Splunk), it works as a self-hosted open source alternative to commercial DMARC report processing services such as Agari Brand Protection, Dmarcian, OnDMARC, ProofPoint Email Fraud Defense, and Valimail.

Features¶

Parses draft and 1.0 standard aggregate/rua reports
Parses forensic/failure/ruf reports
Can parse reports from an inbox over IMAP
Transparently handles gzip or zip compressed reports
Consistent data structures
Simple JSON and/or CSV output
Optionally email the results
Optionally send the results to Elasticsearch and/or Splunk, for use with premade dashboards
Optionally send reports to Apache Kafka

Resources¶

DMARC guides¶

Demystifying DMARC - A complete guide to SPF, DKIM, and DMARC

SPF and DMARC record validation¶

If you are looking for SPF and DMARC record validation and parsing, check out the sister project, checkdmarc.

Lookalike domains¶

DMARC protects against domain spoofing, not lookalike domains. for open source lookalike domain monitoring, check out DomainAware.

CLI help¶

usage: parsedmarc [-h] [-c CONFIG_FILE] [--strip-attachment-payloads]
               [-o OUTPUT] [-n NAMESERVERS [NAMESERVERS ...]]
               [-t DNS_TIMEOUT] [-s] [--debug] [--log-file LOG_FILE] [-v]
               [file_path [file_path ...]]

Parses DMARC reports

positional arguments:
  file_path             one or more paths to aggregate or forensic report
                        files or emails

optional arguments:
  -h, --help            show this help message and exit
  -c CONFIG_FILE, --config-file CONFIG_FILE
                        A path to a configuration file (--silent implied)
  --strip-attachment-payloads
                        remove attachment payloads from forensic report output
  -o OUTPUT, --output OUTPUT
                        write output files to the given directory
  -n NAMESERVERS [NAMESERVERS ...], --nameservers NAMESERVERS [NAMESERVERS ...]
                        nameservers to query (default is Cloudflare's
                        nameservers)
  -t DNS_TIMEOUT, --dns_timeout DNS_TIMEOUT
                        number of seconds to wait for an answer from DNS
                        (default: 6.0)
  -s, --silent          only print errors and warnings
  --debug               print debugging information
  --log-file LOG_FILE   output logging to a file
  -v, --version         show program's version number and exit

Note

In parsedmarc 6.0.0, most CLI options were moved to a configuration file, described below.

Configuration file¶

parsedmarc can be configured by supplying the path to an INI file

parsedmarc -c /etc/parsedmarc.ini

For example

# This is an example comment

[general]
save_aggregate = True
save_forensic = True

[imap]
host = imap.example.com
user = dmarcresports@example.com
password = $uperSecure
watch = True

[elasticsearch]
hosts = 127.0.0.1:9200
ssl = False

[splunk_hec]
url = https://splunkhec.example.com
token = HECTokenGoesHere
index = email

The full set of configuration options are:

general
- save_aggregate - bool: Save aggregate report data to the Elasticsearch and/or Splunk
- save_forensic - bool: Save forensic report data to the Elasticsearch and/or Splunk
- strip_attachments_payloads - bool: Remove attachment payloads from results
- output - str: Directory to place JSON and CSV files in
- nameservers - str: A comma separated list of DNS resolvers (Default: Cloudflare’s public resolvers)
- dns_timeout - float: DNS timeout period
- debug - bool: Print debugging messages
- silent - bool: Only print errors (Default: True)
- log_file - str: Write log messages to a file at this path
imap
- host - str: The IMAP server hostname or IP address
- port - int: The IMAP server port (Default: 993)
- ssl - bool: Use an encrypted SSL/TLS connection (Default: True)
- skip_certificate_verification - bool: Skip certificate verification (not recommended)
- user - str: The IMAP user
- password - str: The IMAP password
- reports_folder - str: The IMAP folder where the incoming reports can be found (Default: INBOX)
- archive_folder - str: The IMAP folder to sort processed emails into (Default: Archive)
- watch - bool: Use the IMAP IDLE command to process messages as they arrive
- delete - bool: Delete messages after processing them, instead of archiving them
- test - bool: Do not move or delete messages
elasticsearch
- hosts - str: A comma separated list of hostnames and ports or URLs (e.g. 127.0.0.1:9200 or https://user:secret@localhost:443)
- ssl - bool: Use an encrypted SSL/TLS connection (Default: True)
- cert_path - str: Path to a trusted certificates
- index_suffix - str: A suffix to apply to the index names
- monthly_indexes - bool: Use monthly indexes instead of daily indexes
splunk_hec
- url - str: The URL of the Splunk HTTP Events Collector (HEC)
- token - str: The HEC token
- index - str: The Splunk index to use
- skip_certificate_verification - bool: Skip certificate verification (not recommended)
kafka
- hosts - str: A comma separated list of Kafka hosts
- user - str: The Kafka user
- passsword - str: The Kafka password
- ssl - bool: Use an encrypted SSL/TLS connection (Default: True)
- aggregate_topic - str: The Kafka topic for aggregate reports
- forensic_topic - str: The Kafka topic for forensic reports
smtp
- host - str: The SMTP hostname
- port - int: The SMTP port (Default: 25)
- ssl - bool: Require SSL/TLS instead of using STARTTLS
- user - str: the SMTP username
- password - str: the SMTP password
- from - str: The From header to use in the email
- to - list: A list of email addresses to send to
- subject - str: The Subject header to use in the email (Default: parsedmarc report)
- attachment - str: The ZIP attachment filenames
- message - str: The email message (Default: Please see the attached parsedmarc report.)

Warning

save_aggregate and save_forensic are separate options because you may not want to save forensic reports (also known as failure reports) to your Elasticsearch instance, particularly if you are in a highly-regulated industry that handles sensitive data, such as healthcare or finance. If your legitimate outgoing email fails DMARC, it is possible that email may appear later in a forensic report.

Forensic reports contain the original headers of an email that failed a DMARC check, and sometimes may also include the full message body, depending on the policy of the reporting organization.

Most reporting organizations do not send forensic reports of any kind for privacy reasons. While aggregate DMARC reports are sent at least daily, it is normal to receive very few forensic reports.

An alternative approach is to still collect forensic/failure/ruf reports in your DMARC inbox, but run parsedmarc with save_forensic = True manually on a separate IMAP folder (using the reports_folder option), after you have manually moved known samples you want to save to that folder (e.g. malicious samples and non-sensitive legitimate samples).

Sample aggregate report output¶

Here are the results from parsing the example report from the dmarc.org wiki. It’s actually an older draft of the the 1.0 report schema standardized in RFC 7480 Appendix C. This draft schema is still in wide use.

parsedmarc produces consistent, normalized output, regardless of the report schema.

JSON¶

{
  "xml_schema": "draft",
  "report_metadata": {
    "org_name": "acme.com",
    "org_email": "noreply-dmarc-support@acme.com",
    "org_extra_contact_info": "http://acme.com/dmarc/support",
    "report_id": "9391651994964116463",
    "begin_date": "2012-04-27 20:00:00",
    "end_date": "2012-04-28 19:59:59",
    "errors": []
  },
  "policy_published": {
    "domain": "example.com",
    "adkim": "r",
    "aspf": "r",
    "p": "none",
    "sp": "none",
    "pct": "100",
    "fo": "0"
  },
  "records": [
    {
      "source": {
        "ip_address": "72.150.241.94",
        "country": "US",
        "reverse_dns": "adsl-72-150-241-94.shv.bellsouth.net",
        "base_domain": "bellsouth.net"
      },
      "count": 2,
      "alignment": {
        "spf": true,
        "dkim": false,
        "dmarc": true
      },
      "policy_evaluated": {
        "disposition": "none",
        "dkim": "fail",
        "spf": "pass",
        "policy_override_reasons": []
      },
      "identifiers": {
        "header_from": "example.com",
        "envelope_from": "example.com",
        "envelope_to": null
      },
      "auth_results": {
        "dkim": [
          {
            "domain": "example.com",
            "selector": "none",
            "result": "fail"
          }
        ],
        "spf": [
          {
            "domain": "example.com",
            "scope": "mfrom",
            "result": "pass"
          }
        ]
      }
    }
  ]
}

CSV¶

xml_schema,org_name,org_email,org_extra_contact_info,report_id,begin_date,end_date,errors,domain,adkim,aspf,p,sp,pct,fo,source_ip_address,source_country,source_reverse_dns,source_base_domain,count,disposition,dkim_alignment,spf_alignment,policy_override_reasons,policy_override_comments,envelope_from,header_from,envelope_to,dkim_domains,dkim_selectors,dkim_results,spf_domains,spf_scopes,spf_results
draft,acme.com,noreply-dmarc-support@acme.com,http://acme.com/dmarc/support,9391651994964116463,2012-04-27 20:00:00,2012-04-28 19:59:59,,example.com,r,r,none,none,100,0,72.150.241.94,US,adsl-72-150-241-94.shv.bellsouth.net,bellsouth.net,2,none,fail,pass,,,example.com,example.com,,example.com,none,fail,example.com,mfrom,pass

Sample forensic report output¶

Thanks to Github user xennn for the anonymized forensic report email sample.

JSON¶

{
     "feedback_type": "auth-failure",
     "user_agent": "Lua/1.0",
     "version": "1.0",
     "original_mail_from": "sharepoint@domain.de",
     "original_rcpt_to": "peter.pan@domain.de",
     "arrival_date": "Mon, 01 Oct 2018 11:20:27 +0200",
     "message_id": "<38.E7.30937.BD6E1BB5@ mailrelay.de>",
     "authentication_results": "dmarc=fail (p=none, dis=none) header.from=domain.de",
     "delivery_result": "smg-policy-action",
     "auth_failure": [
       "dmarc"
     ],
     "reported_domain": "domain.de",
     "arrival_date_utc": "2018-10-01 09:20:27",
     "source": {
       "ip_address": "10.10.10.10",
       "country": null,
       "reverse_dns": null,
       "base_domain": null
     },
     "authentication_mechanisms": [],
     "original_envelope_id": null,
     "dkim_domain": null,
     "sample_headers_only": false,
     "sample": "Received: from Servernameone.domain.local (Servernameone.domain.local [10.10.10.10])\n\tby  mailrelay.de (mail.DOMAIN.de) with SMTP id 38.E7.30937.BD6E1BB5; Mon,  1 Oct 2018 11:20:27 +0200 (CEST)\nDate: 01 Oct 2018 11:20:27 +0200\nMessage-ID: <38.E7.30937.BD6E1BB5@ mailrelay.de>\nTo: <peter.pan@domain.de>\nfrom: \"=?utf-8?B?SW50ZXJha3RpdmUgV2V0dGJld2VyYmVyLcOcYmVyc2ljaHQ=?=\" <sharepoint@domain.de>\nSubject: Subject\nMIME-Version: 1.0\nX-Mailer: Microsoft SharePoint Foundation 2010\nContent-Type: text/html; charset=utf-8\nContent-Transfer-Encoding: quoted-printable\n\n<html><head><base href=3D'\nwettbewerb' /></head><body><!DOCTYPE HTML PUBLIC \"-//W3C//DTD HTML 3.2//EN\"=\n><HTML><HEAD><META NAME=3D\"Generator\" CONTENT=3D\"MS Exchange Server version=\n 08.01.0240.003\"></html>\n",
     "parsed_sample": {
       "from": {
         "display_name": "Interaktive Wettbewerber-Übersicht",
         "address": "sharepoint@domain.de",
         "local": "sharepoint",
         "domain": "domain.de"
       },
       "to_domains": [
         "domain.de"
       ],
       "to": [
         {
           "display_name": null,
           "address": "peter.pan@domain.de",
           "local": "peter.pan",
           "domain": "domain.de"
         }
       ],
       "subject": "Subject",
       "timezone": "+2",
       "mime-version": "1.0",
       "date": "2018-10-01 09:20:27",
       "content-type": "text/html; charset=utf-8",
       "x-mailer": "Microsoft SharePoint Foundation 2010",
       "body": "<html><head><base href='\nwettbewerb' /></head><body><!DOCTYPE HTML PUBLIC \"-//W3C//DTD HTML 3.2//EN\"><HTML><HEAD><META NAME=\"Generator\" CONTENT=\"MS Exchange Server version 08.01.0240.003\"></html>",
       "received": [
         {
           "from": "Servernameone.domain.local Servernameone.domain.local 10.10.10.10",
           "by": "mailrelay.de mail.DOMAIN.de",
           "with": "SMTP id 38.E7.30937.BD6E1BB5",
           "date": "Mon, 1 Oct 2018 11:20:27 +0200 CEST",
           "hop": 1,
           "date_utc": "2018-10-01 09:20:27",
           "delay": 0
         }
       ],
       "content-transfer-encoding": "quoted-printable",
       "message-id": "<38.E7.30937.BD6E1BB5@ mailrelay.de>",
       "has_defects": false,
       "headers": {
         "Received": "from Servernameone.domain.local (Servernameone.domain.local [10.10.10.10])\n\tby  mailrelay.de (mail.DOMAIN.de) with SMTP id 38.E7.30937.BD6E1BB5; Mon,  1 Oct 2018 11:20:27 +0200 (CEST)",
         "Date": "01 Oct 2018 11:20:27 +0200",
         "Message-ID": "<38.E7.30937.BD6E1BB5@ mailrelay.de>",
         "To": "<peter.pan@domain.de>",
         "from": "\"Interaktive Wettbewerber-Übersicht\" <sharepoint@domain.de>",
         "Subject": "Subject",
         "MIME-Version": "1.0",
         "X-Mailer": "Microsoft SharePoint Foundation 2010",
         "Content-Type": "text/html; charset=utf-8",
         "Content-Transfer-Encoding": "quoted-printable"
       },
       "reply_to": [],
       "cc": [],
       "bcc": [],
       "attachments": [],
       "filename_safe_subject": "Subject"
     }
   }

CSV¶

feedback_type,user_agent,version,original_envelope_id,original_mail_from,original_rcpt_to,arrival_date,arrival_date_utc,subject,message_id,authentication_results,dkim_domain,source_ip_address,source_country,source_reverse_dns,source_base_domain,delivery_result,auth_failure,reported_domain,authentication_mechanisms,sample_headers_only
auth-failure,Lua/1.0,1.0,,sharepoint@domain.de,peter.pan@domain.de,"Mon, 01 Oct 2018 11:20:27 +0200",2018-10-01 09:20:27,Subject,<38.E7.30937.BD6E1BB5@ mailrelay.de>,"dmarc=fail (p=none, dis=none) header.from=domain.de",,10.10.10.10,,,,smg-policy-action,dmarc,domain.de,,False

Bug reports¶

Please report bugs on the GitHub issue tracker

https://github.com/domainaware/parsedmarc/issues

Installation¶

parsedmarc works with Python 3 only.

Note

If your system is behind a web proxy, you neeed to configure your system to use that proxy. To do this, edit /etc/environment and add your proxy details there, for example:

http_proxy=http://user:password@prox-server:3128
https_proxy=https://user:password@prox-server:3128
ftp_proxy=http://user:password@prox-server:3128

Or if no credentials are needed:

http_proxy=http://prox-server:3128
https_proxy=https://prox-server:3128
ftp_proxy=http://prox-server:3128

This will set the the proxy up for use system-wide, including for parsedmarc.

Warning

If your mail server is Microsoft Exchange, ensure that it is patched to at least:

Exchange Server 2010 Update Rollup 22 (KB4295699)
Exchange Server 2013 Cumulative Update 21 (KB4099855)
Exchange Server 2016 Cumulative Update 11 (KB4134118)

On Debian or Ubuntu systems, run:

sudo apt-get install python3-pip

On CentOS systems, run:

sudo yum install -y python34-setuptools
sudo easy_install-3.4 pip

Python 3 installers for Windows and macOS can be found at https://www.python.org/downloads/

To install or upgrade to the latest stable release of parsedmarc on macOS or Linux, run

sudo -H pip3 install -U parsedmarc

Or, install the latest development release directly from GitHub:

sudo -H pip3 install -U git+https://github.com/domainaware/parsedmarc.git

Note

On Windows, pip3 is pip, even with Python 3. So on Windows, substitute pip as an administrator in place of sudo pip3, in the above commands.

Installation using pypy3¶

For the best possible processing speed, consider using parsedmarc inside a pypy3 virtualenv. First, download the latest portable Linux version of pypy3. Extract it to /opt/pypy3 (sudo mkdir /opt if /opt does not exist), then create a symlink:

wget https://bitbucket.org/squeaky/portable-pypy/downloads/pypy3.5-6.0.0-linux_x86_64-portable.tar.bz2
tar -jxf pypy3.5-6.0.0-linux_x86_64-portable.tar.bz2
rm pypy3.5-6.0.0-linux_x86_64-portable.tar.bz2
sudo chown -R root:root pypy3.5-6.0.0-linux_x86_64-portable
sudo mv pypy3.5-6.0.0-linux_x86_64-portable /opt/pypy3
sudo ln -s /opt/pypy3/bin/pypy3 /usr/local/bin/pypy3

Install virtualenv on your system:

sudo apt-get install python3-pip
sudo -H pip3 install -U virtualenv

Uninstall any instance of parsedmarc that you may have installed globally

sudo -H pip3 uninstall -y parsedmarc

Next, create a pypy3 virtualenv for parsedmarc

sudo mkdir /opt/venvs
cd /opt/venvs
sudo -H pip3 install -U virtualenv
sudo virtualenv --download -p /usr/local/bin/pypy3 parsedmarc
sudo -H /opt/venvs/parsedmarc/bin/pip3 install -U parsedmarc
sudo ln -s /opt/venvs/parsedmarc/bin/parsedmarc /usr/local/bin/parsedmarc

To upgrade parsedmarc inside the virtualenv, run:

sudo -H /opt/venvs/parsedmarc/bin/pip3 install -U parsedmarc

Or, install the latest development release directly from GitHub:

sudo -H /opt/venvs/parsedmarc/bin/pip3 install -U git+https://github.com/domainaware/parsedmarc.git

Optional dependencies¶

If you would like to be able to parse emails saved from Microsoft Outlook (i.e. OLE .msg files), install msgconvert:

On Debian or Ubuntu systems, run:

sudo apt-get install libemail-outlook-message-perl

DNS performance¶

You can often improve performance by providing one or more local nameservers to the CLI or function calls, as long as those nameservers return the same records as the public DNS.

Note

If you do not specify any nameservers, Cloudflare’s public nameservers are used by default, not the system’s default nameservers.

This is done to avoid a situation where records in a local nameserver do not match records in the public DNS.

Testing multiple report analyzers¶

If you would like to test parsedmarc and another report processing solution at the same time, you can have up to two mailto URIs each in the rua and ruf tags in your DMARC record, separated by commas.

Accessing an inbox using OWA/EWS¶

Some organisations do not allow IMAP, and only support Exchange Web Services (EWS)/Outlook Web Access (OWA). In that case, Davmail will need to be set up as a local EWS/OWA IMAP gateway.

To do this, download the latest davmail-version.zip from https://sourceforge.net/projects/davmail/files/

Extract the zip using the unzip command.

Install Java:

sudo apt-install default-jre-headless

Configure Davmail by creating a davmail.properties file

# DavMail settings, see http://davmail.sourceforge.net/ for documentation

#############################################################
# Basic settings

# Server or workstation mode
davmail.server=true

# connection mode auto, EWS or WebDav
davmail.enableEws=auto

# base Exchange OWA or EWS url
davmail.url=https://outlook.office365.com/EWS/Exchange.asmx

# Listener ports
davmail.imapPort=1143

#############################################################
# Network settings

# Network proxy settings
davmail.enableProxy=false
davmail.useSystemProxies=false
davmail.proxyHost=
davmail.proxyPort=
davmail.proxyUser=
davmail.proxyPassword=

# proxy exclude list
davmail.noProxyFor=

# allow remote connection to DavMail
davmail.allowRemote=false

# bind server sockets to the loopback address
davmail.bindAddress=127.0.0.1

# disable SSL for specified listeners
davmail.ssl.nosecureimap=false

# Send keepalive character during large folder and messages download
davmail.enableKeepalive=true
# Message count limit on folder retrieval
davmail.folderSizeLimit=0

#############################################################
# IMAP settings

# Delete messages immediately on IMAP STORE \Deleted flag
davmail.imapAutoExpunge=true

# Enable IDLE support, set polling delay in minutes
davmail.imapIdleDelay=1

# Always reply to IMAP RFC822.SIZE requests with Exchange approximate
# message size for performance reasons
davmail.imapAlwaysApproxMsgSize=true

#############################################################

Run Davmail

./davmail.sh

Because you are interacting with Davmail server over the loopback (i.e. 127.0.0.1), pass the following options to parsedmarc:

--imap-no-ssl -H 127.0.0.1 --imap-port 1143

Elasticsearch and Kibana¶

Note

Splunk is also supported starting with parsedmarc 4.3.0

To set up visual dashboards of DMARC data, install Elasticsearch and Kibana.

Note

Elasticsearch and Kibana 6 or later are required

On Debian/Ubuntu based systems, run:

sudo apt-get install -y apt-transport-https
wget -qO - https://artifacts.elastic.co/GPG-KEY-elasticsearch | sudo apt-key add -
echo "deb https://artifacts.elastic.co/packages/6.x/apt stable main" | sudo tee -a /etc/apt/sources.list.d/elastic-6.x.list
sudo apt-get update
sudo apt-get install -y default-jre-headless elasticsearch kibana

For CentOS, RHEL, and other RPM systems, follow the Elastic RPM guides for Elasticsearch and Kibana.

Warning

The default JVM heap size for Elasticsearch is very small (1g), which will cause it to crash under a heavy load. To fix this, increase the minimum and maximum JVM heap sizes in /etc/elasticsearch/jvm.options to more reasonable levels, depending on your server’s resources.

Make sure the system has at least 2 GB more RAM then the assigned JVM heap size.

Always set the minimum and maximum JVM heap sizes to the same value.

For example, to set a 4 GB heap size, set

-Xms4g
-Xmx4g

See https://www.elastic.co/guide/en/elasticsearch/reference/current/heap-size.html for more information.

sudo systemctl daemon-reload
sudo systemctl enable elasticsearch.service
sudo systemctl enable kibana.service
sudo service elasticsearch start
sudo service kibana start

Without the commercial X-Pack or ReadonlyREST products, Kibana does not have any authentication mechanism of its own. You can use nginx as a reverse proxy that provides basic authentication.

sudo apt-get install -y nginx apache2-utils

Or, on CentOS:

sudo yum install -y nginx httpd-tools

Create a directory to store the certificates and keys:

mkdir ~/ssl
cd ~/ssl

To create a self-signed certificate, run:

openssl req -x509 -nodes -days 365 -newkey rsa:4096 -keyout kibana.key -out kibana.crt

Or, to create a Certificate Signing Request (CSR) for a CA, run:

openssl req -newkey rsa:4096-nodes -keyout kibana.key -out kibana.csr

Fill in the prompts. Watch out for Common Name (e.g. server FQDN or YOUR domain name), which is the IP address or domain name that you will be hosting Kibana on. it is the most important field.

If you generated a CSR, remove the CSR after you have your certs

rm -f kibana.csr

Move the keys into place and secure them:

cd
sudo mv ssl /etc/nginx
sudo chown -R root:www-data /etc/nginx/ssl
sudo chmod -R u=rX,g=rX,o= /etc/nginx/ssl

Disable the default nginx configuration:

sudo rm /etc/nginx/sites-enabled/default

Create the web server configuration

sudo nano /etc/nginx/sites-available/kibana

server {
    listen 443 ssl http2;
    ssl_certificate /etc/nginx/ssl/kibana.crt;
    ssl_certificate_key /etc/nginx/ssl/kibana.key;
    ssl_session_timeout 1d;
    ssl_session_cache shared:SSL:50m;
    ssl_session_tickets off;


    # modern configuration. tweak to your needs.
    ssl_protocols TLSv1.2;
    ssl_ciphers 'ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-SHA384:ECDHE-RSA-AES256-SHA384:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA256';
    ssl_prefer_server_ciphers on;

    # Uncomment this next line if you are using a signed, trusted cert
    #add_header Strict-Transport-Security "max-age=63072000; includeSubdomains; preload";
    add_header X-Frame-Options SAMEORIGIN;
    add_header X-Content-Type-Options nosniff;
    auth_basic "Login required";
    auth_basic_user_file /etc/nginx/htpasswd;

    location / {
        proxy_pass http://127.0.0.1:5601;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}

server {
    listen 80;
    return 301 https://$host$request_uri;
}

Enable the nginx configuration for Kibana:

sudo ln -s /etc/nginx/sites-available/kibana /etc/nginx/sites-enabled/kibana

Add a user to basic authentication:

sudo htpasswd -c /etc/nginx/htpasswd exampleuser

Where exampleuser is the name of the user you want to add.

Secure the permissions of the httpasswd file:

sudo chown root:www-data /etc/nginx/htpasswd
sudo chmod u=rw,g=r,o= /etc/nginx/htpasswd

Restart nginx:

sudo service nginx restart

Now that Elasticsearch is up and running, use parsedmarc to send data to it.

Download (right click the link and click save as) kibana_saved_objects.json.

Import kibana_saved_objects.json the Saved Objects tab of the management page of Kibana.

It will give you the option to overwrite existing saved dashboards or visualizations, which could be used to restore them if you or someone else breaks them, as there are no permissions/access controls in Kibana without the commercial X-Pack.

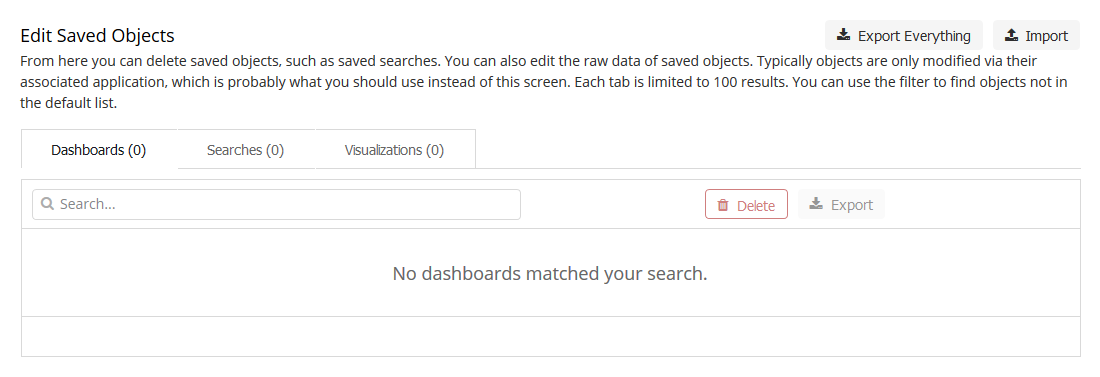

A screenshot of setting the Saved Objects management UI in Kibana

A screenshot of the overwrite conformation prompt

Upgrading Kibana index patterns¶

parsedmarc 5.0.0 makes some changes to the way data is indexed in Elasticsearch. if you are upgrading from a previous release of parsedmarc, you need to complete the following steps to replace the Kibana index patterns with versions that match the upgraded indexes:

Login in to Kibana, and click on Management
Under Kibana, click on Saved Objects
Check the checkboxes for the dmarc_aggregate and dmarc_forensic index patterns
Click Delete
Click Delete on the conformation message
Download (right click the link and click save as) the latest version of kibana_saved_objects.json
Import kibana_saved_objects.json by clicking Import from the Kibana Saved Objects page

Records retention¶

Starting in version 5.0.0, parsedmarc stores data in a separate index for each day to make it easy to comply with records retention regulations such as GDPR. For fore information, check out the Elastic guide to managing time-based indexes efficiently.

Splunk¶

Starting in version 4.3.0 parsedmarc supports sending aggregate and/or forensic DMARC data to a Splunk HTTP Event collector (HEC).

The project repository contains XML files for premade Splunk dashboards for aggregate and forensic DMARC reports.

Copy and paste the contents of each file into a separate Splunk dashboard XML editor.

Warning

Change all occurrences of index="email" in the XML to match your own index name.

The Splunk dashboards display the same content and layout as the Kibana dashboards, although the Kibana dashboards have slightly easier and more flexible filtering options.

Running parsedmarc as a systemd service¶

Use systemd to run parsedmarc as a service and process reports as they arrive.

Create a system user

sudo useradd parsedmarc -r -s /bin/false

Protect the parsedmarc configuration file from prying eyes

sudo chown parsedmarc:parsedmarc /etc/parsedmarc.ini
sudo chmod ug=r,o= /etc/parsedmarc.ini

Create the service configuration file

sudo nano /etc/systemd/system/parsedmarc.service

[Unit]
Description=parsedmarc mailbox watcher
Documentation=https://domainaware.github.io/parsedmarc/
Wants=network-online.target
After=network.target network-online.target elasticsearch.service

[Service]
ExecStart=/usr/local/bin/parsedmarc -c /etc/parsedmarc.ini
User=parsedmarc
Group=parsedmarc
Restart=always
RestartSec=5m

[Install]
WantedBy=multi-user.target

Then, enable the service

sudo systemctl daemon-reload
sudo systemctl enable parsedmarc.service
sudo service parsedmarc restart

Note

You must also run the above commands whenever you edit parsedmarc.service.

Warning

Always restart the service every time you upgrade to a new version of parsedmarc:

sudo service parsedmarc restart

To check the status of the service, run:

service parsedmarc status

Note

In the event of a crash, systemd will restart the service after 10 minutes, but the service parsedmarc status command will only show the logs for the current process. To vew the logs for previous runs as well as the current process (newest to oldest), run:

journalctl -u parsedmarc.service -r

Using the Kibana dashboards¶

The Kibana DMARC dashboards are a human-friendly way to understand the results from incoming DMARC reports.

Note

The default dashboard is DMARC Summary. To switch between dashboards, click on the Dashboard link in the left side menu of Kibana.

DMARC Summary¶

As the name suggests, this dashboard is the best place to start reviewing your aggregate DMARC data.

Across the top of the dashboard, three pie charts display the percentage of alignment pass/fail for SPF, DKIM, and DMARC. Clicking on any chart segment will filter for that value.

Note

Messages should not be considered malicious just because they failed to pass DMARC; especially if you have just started collecting data. It may be a legitimate service that needs SPF and DKIM configured correctly.

Start by filtering the results to only show failed DKIM alignment. While DMARC passes if a message passes SPF or DKIM alignment, only DKIM alignment remains valid when a message is forwarded without changing the from address, which is often caused by a mailbox forwarding rule. This is because DKIM signatures are part of the message headers, whereas SPF relies on SMTP session headers.

Underneath the pie charts. you can see graphs of DMARC passage and message disposition over time.

Under the graphs you will find the most useful data tables on the dashboard. On the left, there is a list of organizations that are sending you DMARC reports. In the center, there is a list of sending servers grouped by the base domain in their reverse DNS. On the right, there is a list of email from domains, sorted by message volume.

By hovering your mouse over a data table value and using the magnifying glass icons, you can filter on our filter out different values. Start by looking at the Message Sources by Reverse DNS table. Find a sender that you recognize, such as an email marketing service, hover over it, and click on the plus (+) magnifying glass icon, to add a filter that only shows results for that sender. Now, look at the Message From Header table to the right. That shows you the domains that a sender is sending as, which might tell you which brand/business is using a particular service. With that information, you can contact them and have them set up DKIM.

Note

If you have a lot of B2C customers, you may see a high volume of emails as your domains coming from consumer email services, such as Google/Gmail and Yahoo! This occurs when customers have mailbox rules in place that forward emails from an old account to a new account, which is why DKIM authentication is so important, as mentioned earlier. Similar patterns may be observed with businesses who send from reverse DNS addressees of parent, subsidiary, and outdated brands.

Further down the dashboard, you can filter by source country or source IP address.

Tables showing SPF and DKIM alignment details are located under the IP address table.

Note

Previously, the alignment tables were included in a separate dashboard called DMARC Alignment Failures. That dashboard has been consolidated into the DMARC Summary dashboard. To view failures only, use the pie chart.

Any other filters work the same way. You can also add your own custom temporary filters by clicking on Add Filter at the upper right of the page.

DMARC Forensic Samples¶

The DMARC Forensic Samples dashboard contains information on DMARC forensic reports (also known as failure reports or ruf reports). These reports contain samples of emails that have failed to pass DMARC.

Note

Most recipients do not send forensic/failure/ruf reports at all to avoid privacy leaks. Some recipients (notably Chinese webmail services) will only supply the headers of sample emails. Very few provide the entire email.

DMARC Alignment Guide¶

DMARC ensures that SPF and DKM authentication mechanisms actually authenticate against the same domain that the end user sees.

A message passes a DMARC check by passing DKIM or SPF, as long as the related indicators are also in alignment.

	DKIM	SPF
Passing	The signature in the DKIM header is validated using a public key that is published as a DNS record of the domain name specified in the signature	The mail server’s IP address is listed in the SPF record of the domain in the SMTP envelope’s mail from header
Alignment	The signing domain aligns with the domain in the message’s from header	The domain in the SMTP envelope’s mail from header aligns with the domain in the message’s from header

What if a sender won’t support DKIM/DMARC?¶

Some vendors don’t know about DMARC yet; ask about SPF and DKIM/email authentication.
Check if they can send through your email relays instead of theirs.
Do they really need to spoof your domain? Why not use the display name instead?
Worst case, have that vendor send email as a specific subdomain of your domain (e.g. noreply@news.example.com), and then create separate SPF and DMARC records on news.example.com, and set p=none in that DMARC record.

Warning

Do not alter the p or sp values of the DMARC record on the Top-Level Domain (TLD) – that would leave you vulnerable to spoofing of your TLD and/or any subdomain.

API¶

A Python package for parsing DMARC reports

exception parsedmarc.IMAPError[source]¶: Raised when an IMAP error occurs

exception parsedmarc.InvalidAggregateReport[source]¶: Raised when an invalid DMARC aggregate report is encountered

exception parsedmarc.InvalidDMARCReport[source]¶: Raised when an invalid DMARC report is encountered

exception parsedmarc.InvalidForensicReport[source]¶: Raised when an invalid DMARC forensic report is encountered

exception parsedmarc.ParserError[source]¶: Raised whenever the parser fails for some reason

exception parsedmarc.SMTPError[source]¶: Raised when a SMTP error occurs

parsedmarc.email_results(results, host, mail_from, mail_to, port=0, use_ssl=False, user=None, password=None, subject=None, attachment_filename=None, message=None, ssl_context=None)[source]¶

Emails parsing results as a zip file

Parameters:

results (OrderedDict) – Parsing results
host – Mail server hostname or IP address
mail_from – The value of the message from header
mail_to – A list of addresses to mail to
port (int) – Port to use
use_ssl (bool) – Require a SSL connection from the start
user – An optional username
password – An optional password
subject – Overrides the default message subject
attachment_filename – Override the default attachment filename
message – Override the default plain text body
ssl_context – SSL context options

parsedmarc.extract_xml(input_)[source]¶

Extracts xml from a zip or gzip file at the given path, file-like object, or bytes.

Parameters:	input – A path to a file, a file like object, or bytes
Returns:	The extracted XML
Return type:	str

parsedmarc.get_dmarc_reports_from_inbox(host=None, user=None, password=None, connection=None, port=None, ssl=True, ssl_context=None, move_supported=None, reports_folder='INBOX', archive_folder='Archive', delete=False, test=False, nameservers=None, dns_timeout=6.0, strip_attachment_payloads=False, results=None)[source]¶

Fetches and parses DMARC reports from sn inbox

Parameters:	host – The mail server hostname or IP address user – The mail server user password – The mail server password connection – An IMAPCLient connection to reuse port – The mail server port ssl (bool) – Use SSL/TLS ssl_context (SSLContext) – A SSL context move_supported – Indicate if the IMAP server supports the MOVE command if None) ((autodetect) – reports_folder – The IMAP folder where reports can be found archive_folder – The folder to move processed mail to delete (bool) – Delete messages after processing them test (bool) – Do not move or delete messages after processing them nameservers (list) – A list of DNS nameservers to query dns_timeout (float) – Set the DNS query timeout strip_attachment_payloads (bool) – Remove attachment payloads from report results (forensic) – results (dict) – Results from the previous run
Returns:	Lists of `aggregate_reports` and `forensic_reports`
Return type:	OrderedDict

parsedmarc.get_imap_capabilities(server)[source]¶

Returns a list of an IMAP server’s capabilities

Parameters:	server (imapclient.IMAPClient) – An instance of imapclient.IMAPClient

Returns (list): A list of capabilities

parsedmarc.get_report_zip(results)[source]¶

Creates a zip file of parsed report output

Parameters:	results (OrderedDict) – The parsed results
Returns:	zip file bytes
Return type:	bytes

parsedmarc.parse_aggregate_report_file(_input, nameservers=None, dns_timeout=2.0)[source]¶

Parses a file at the given path, a file-like object. or bytes as a aggregate DMARC report

Parameters:	_input – A path to a file, a file like object, or bytes nameservers (list) – A list of one or more nameservers to use public DNS resolvers by default) ((Cloudflare's) – dns_timeout (float) – Sets the DNS timeout in seconds
Returns:	The parsed DMARC aggregate report
Return type:	OrderedDict

parsedmarc.parse_aggregate_report_xml(xml, nameservers=None, timeout=2.0)[source]¶

Parses a DMARC XML report string and returns a consistent OrderedDict

Parameters:	xml (str) – A string of DMARC aggregate report XML nameservers (list) – A list of one or more nameservers to use public DNS resolvers by default) ((Cloudflare's) – timeout (float) – Sets the DNS timeout in seconds
Returns:	The parsed aggregate DMARC report
Return type:	OrderedDict

parsedmarc.parse_forensic_report(feedback_report, sample, msg_date, nameservers=None, dns_timeout=2.0, strip_attachment_payloads=False)[source]¶

Converts a DMARC forensic report and sample to a OrderedDict

Parameters:	feedback_report (str) – A message’s feedback report as a string sample (str) – The RFC 822 headers or RFC 822 message sample msg_date (str) – The message’s date header nameservers (list) – A list of one or more nameservers to use public DNS resolvers by default) ((Cloudflare's) – dns_timeout (float) – Sets the DNS timeout in seconds strip_attachment_payloads (bool) – Remove attachment payloads from report results (forensic) –
Returns:	A parsed report and sample
Return type:	OrderedDict

parsedmarc.parse_report_email(input_, nameservers=None, dns_timeout=2.0, strip_attachment_payloads=False)[source]¶

Parses a DMARC report from an email

Parameters:

input – An emailed DMARC report in RFC 822 format, as bytes or a string
nameservers (list) – A list of one or more nameservers to use
dns_timeout (float) – Sets the DNS timeout in seconds
strip_attachment_payloads (bool) – Remove attachment payloads from
report results (forensic) –

Returns:

report_type: aggregate or forensic
report: The parsed report

Return type:

OrderedDict

parsedmarc.parse_report_file(input_, nameservers=None, dns_timeout=2.0, strip_attachment_payloads=False)[source]¶

Parses a DMARC aggregate or forensic file at the given path, a file-like object. or bytes

Parameters:	input – A path to a file, a file like object, or bytes nameservers (list) – A list of one or more nameservers to use public DNS resolvers by default) ((Cloudflare's) – dns_timeout (float) – Sets the DNS timeout in seconds strip_attachment_payloads (bool) – Remove attachment payloads from report results (forensic) –
Returns:	The parsed DMARC report
Return type:	OrderedDict

parsedmarc.parsed_aggregate_reports_to_csv(reports)[source]¶

Converts one or more parsed aggregate reports to flat CSV format, including headers

Parameters:	reports – A parsed aggregate report or list of parsed aggregate reports
Returns:	Parsed aggregate report data in flat CSV format, including headers
Return type:	str

parsedmarc.parsed_forensic_reports_to_csv(reports)[source]¶

Converts one or more parsed forensic reports to flat CSV format, including headers

Parameters:	reports – A parsed forensic report or list of parsed forensic reports
Returns:	Parsed forensic report data in flat CSV format, including headers
Return type:	str

parsedmarc.save_output(results, output_directory='output')[source]¶

Save report data in the given directory

Parameters:	results (OrderedDict) – Parsing results output_directory – The patch to the directory to save in

parsedmarc.watch_inbox(host, username, password, callback, port=None, ssl=True, ssl_context=None, reports_folder='INBOX', archive_folder='Archive', delete=False, test=False, wait=30, nameservers=None, dns_timeout=6.0, strip_attachment_payloads=False)[source]¶

Use an IDLE IMAP connection to parse incoming emails, and pass the results to a callback function

Parameters:

host – The mail server hostname or IP address
username – The mail server username
password – The mail server password
callback – The callback function to receive the parsing results
port – The mail server port
ssl (bool) – Use SSL/TLS
ssl_context (SSLContext) – A SSL context
reports_folder – The IMAP folder where reports can be found
archive_folder – The folder to move processed mail to
delete (bool) – Delete messages after processing them
test (bool) – Do not move or delete messages after processing them
wait (int) – Number of seconds to wait for a IMAP IDLE response
nameservers (list) – A list of one or more nameservers to use
public DNS resolvers by default) ((Cloudflare's) –
dns_timeout (float) – Set the DNS query timeout
strip_attachment_payloads (bool) – Replace attachment payloads in
report samples with None (forensic) –

parsedmarc.elastic¶

exception parsedmarc.elastic.AlreadySaved[source]¶: Raised when a report to be saved matches an existing report

exception parsedmarc.elastic.ElasticsearchError[source]¶: Raised when an Elasticsearch error occurs

parsedmarc.elastic.create_indexes(names, settings=None)[source]¶

Create Elasticsearch indexes

Parameters:	names (list) – A list of index names settings (dict) – Index settings

parsedmarc.elastic.migrate_indexes(aggregate_indexes=None, forensic_indexes=None)[source]¶

Updates index mappings

Parameters:	aggregate_indexes (list) – A list of aggregate index names forensic_indexes (list) – A list of forensic index names

parsedmarc.elastic.save_aggregate_report_to_elasticsearch(aggregate_report, index_suffix=None, monthly_indexes=False)[source]¶

Saves a parsed DMARC aggregate report to ElasticSearch

Parameters:	aggregate_report (OrderedDict) – A parsed forensic report index_suffix (str) – The suffix of the name of the index to save to monthly_indexes (bool) – Use monthly indexes instead of daily indexes
Raises:	`AlreadySaved`

parsedmarc.elastic.save_forensic_report_to_elasticsearch(forensic_report, index_suffix=None, monthly_indexes=False)[source]¶

Saves a parsed DMARC forensic report to ElasticSearch

Parameters:	forensic_report (OrderedDict) – A parsed forensic report index_suffix (str) – The suffix of the name of the index to save to monthly_indexes (bool) – Use monthly indexes instead of daily indexes
Raises:	`AlreadySaved`

parsedmarc.elastic.set_hosts(hosts, use_ssl=False, ssl_cert_path=None)[source]¶

Sets the Elasticsearch hosts to use

Parameters:	hosts (str) – A single hostname or URL, or list of hostnames or URLs use_ssl (bool) – Use a HTTPS connection to the server ssl_cert_path (str) – Path to the certificate chain

parsedmarc.splunk¶

class parsedmarc.splunk.HECClient(url, access_token, index, source='parsedmarc', verify=True, timeout=60)[source]¶

A client for a Splunk HTTP Events Collector (HEC)

save_aggregate_reports_to_splunk(aggregate_reports)[source]¶

Saves aggregate DMARC reports to Splunk

Parameters:	aggregate_reports – A list of aggregate report dictionaries save in Splunk (to) –

save_forensic_reports_to_splunk(forensic_reports)[source]¶

Saves forensic DMARC reports to Splunk

Parameters:	forensic_reports (list) – A list of forensic report dictionaries save in Splunk (to) –

exception parsedmarc.splunk.SplunkError[source]¶: Raised when a Splunk API error occurs

parsedmarc.utils¶

Utility functions that might be useful for other projects

exception parsedmarc.utils.EmailParserError[source]¶: Raised when an error parsing the email occurs

parsedmarc.utils.convert_outlook_msg(msg_bytes)[source]¶

Uses the msgconvert Perl utility to convert an Outlook MS file to standard RFC 822 format

Parameters:	msg_bytes (bytes) – the content of the .msg file
Returns:	A RFC 822 string

parsedmarc.utils.decode_base64(data)[source]¶

Decodes a base64 string, with padding being optional

Parameters:	data – A base64 encoded string
Returns:	The decoded bytes
Return type:	bytes

parsedmarc.utils.get_base_domain(domain)[source]¶

Gets the base domain name for the given domain

Note

Results are based on a list of public domain suffixes at https://publicsuffix.org/list/public_suffix_list.dat.

This file is saved to the current working directory, where it is used as a cache file for 24 hours.

Parameters:	domain (str) – A domain or subdomain
Returns:	The base domain of the given domain
Return type:	str

parsedmarc.utils.get_filename_safe_string(string)[source]¶

Converts a string to a string that is safe for a filename :param string: A string to make safe for a filename :type string: str

Returns:	A string safe for a filename
Return type:	str

parsedmarc.utils.get_ip_address_country(ip_address)[source]¶

Uses the MaxMind Geolite2 Country database to return the ISO code for the country associated with the given IPv4 or IPv6 address

Parameters:	ip_address (str) – The IP address to query for
Returns:	And ISO country code associated with the given IP address
Return type:	str

parsedmarc.utils.get_ip_address_info(ip_address, cache=None, nameservers=None, timeout=2.0)[source]¶

Returns reverse DNS and country information for the given IP address

Parameters:	ip_address (str) – The IP address to check cache (ExpiringDict) – Cache storage nameservers (list) – A list of one or more nameservers to use public DNS resolvers by default) ((Cloudflare's) – timeout (float) – Sets the DNS timeout in seconds
Returns:	`ip_address`, `reverse_dns`
Return type:	OrderedDict

parsedmarc.utils.get_reverse_dns(ip_address, cache=None, nameservers=None, timeout=2.0)[source]¶

Resolves an IP address to a hostname using a reverse DNS query

Parameters:	ip_address (str) – The IP address to resolve cache (ExpiringDict) – Cache storage nameservers (list) – A list of one or more nameservers to use public DNS resolvers by default) ((Cloudflare's) – timeout (float) – Sets the DNS query timeout in seconds
Returns:	The reverse DNS hostname (if any)
Return type:	str

parsedmarc.utils.human_timestamp_to_datetime(human_timestamp, to_utc=False)[source]¶

Converts a human-readable timestamp into a Python DateTime object

Parameters:	human_timestamp (str) – A timestamp string to_utc (bool) – Convert the timestamp to UTC
Returns:	The converted timestamp
Return type:	DateTime

parsedmarc.utils.human_timestamp_to_timestamp(human_timestamp)[source]¶

Converts a human-readable timestamp into a into a UNIX timestamp

Parameters:	human_timestamp (str) – A timestamp in YYYY-MM-DD HH:MM:SS` format
Returns:	The converted timestamp
Return type:	float

parsedmarc.utils.is_outlook_msg(content)[source]¶

Checks if the given content is a Outlook msg OLE file

Parameters:	content – Content to check
Returns:	A flag the indicates if a file is a Outlook MSG file
Return type:	bool

parsedmarc.utils.parse_email(data, strip_attachment_payloads=False)[source]¶

A simplified email parser

Parameters:	data – The RFC 822 message string, or MSG binary strip_attachment_payloads (bool) – Remove attachment payloads

Returns (dict): Parsed email data

parsedmarc.utils.query_dns(domain, record_type, cache=None, nameservers=None, timeout=2.0)[source]¶

Queries DNS

Parameters:	domain (str) – The domain or subdomain to query about record_type (str) – The record type to query for cache (ExpiringDict) – Cache storage nameservers (list) – A list of one or more nameservers to use public DNS resolvers by default) ((Cloudflare's) – timeout (float) – Sets the DNS timeout in seconds
Returns:	A list of answers
Return type:	list

parsedmarc.utils.timestamp_to_datetime(timestamp)[source]¶

Converts a UNIX/DMARC timestamp to a Python DateTime object

Parameters:	timestamp (int) – The timestamp
Returns:	The converted timestamp as a Python `DateTime` object
Return type:	DateTime

parsedmarc.utils.timestamp_to_human(timestamp)[source]¶

Converts a UNIX/DMARC timestamp to a human-readable string

Parameters:	timestamp – The timestamp
Returns:	The converted timestamp in `YYYY-MM-DD HH:MM:SS` format
Return type:	str

parsedmarc documentation - Open source DMARC report analyzer and visualizer¶

Features¶

Resources¶

DMARC guides¶

SPF and DMARC record validation¶

Lookalike domains¶

CLI help¶

Configuration file¶

Sample aggregate report output¶

JSON¶

CSV¶

Sample forensic report output¶

JSON¶

CSV¶

Bug reports¶

Installation¶

Installation using pypy3¶

Optional dependencies¶

DNS performance¶

Testing multiple report analyzers¶

Accessing an inbox using OWA/EWS¶

Elasticsearch and Kibana¶

Upgrading Kibana index patterns¶

Records retention¶

Splunk¶

Running parsedmarc as a systemd service¶

Using the Kibana dashboards¶

DMARC Summary¶

DMARC Forensic Samples¶

DMARC Alignment Guide¶

What if a sender won’t support DKIM/DMARC?¶

API¶

parsedmarc.elastic¶

parsedmarc.splunk¶

parsedmarc.utils¶

Indices and tables¶
